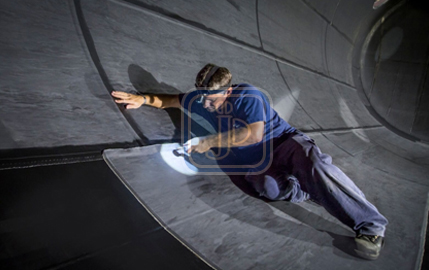

RUBBER LINING

JPI leader in corrosion and abrasion resistant rubber linings for more than three decades., JPI has been supplying the entire range of rubber and other elastomer linings for both standard and highly specialized process equipment.

JPI has, over the years, successfully executed numerous challenging projects for various process industries. A review of JPI's list of prestigious clients, the nature and size of jobs undertaken both in India and abroad - a number of which have been repeat orders - is testimony to the confidence reposed in JPI by clients.

Excellence in quality is one such thing, on which we have never compromised under any condition. We have employed a team of quality auditors, who are checking the quality of our products throughout the production process. They work round the clock and make use of the available resources to guarantee the absolute finesses of our Rubber Lined Equipment (Cold & Hot Vulcanizing Systems).

Every stage of production process passes through stringent quality checks in our well equipped quality control unit. Our range of products is tested on the basis of the following parameters:

  • Resistance to temperature
  • Resistance to chemicals
  • Strength
  • Resistance to acids/ alkaliDimensional accuracy
RUBBER COMPOUNDS FOR

DIFFERENT APPLICATIONS:-

TYPE

SHORE HARDNESS RANGE

CHARACTERISTICS

Soft Natural Rubber

30 o A - 70 o A

Suitable upto 70 o C. Lower hardness compounds for abrasive conditions and higher hardness compounds for chemical resistance

Semi-Ebonite Natural Rubber

60 o D - 70 o D

Suitable upto 100 o C.Resistant to chemicals except chlorine and chlorine-based compounds

Black Semi-Ebonite Natural Rubber

65 o D - 75 o D

Suitable for fluorine, caustic Soda ( Low Ca, Mg Si) & Membrane cell Industry upto 100 o C

Ebonite Natural Rubber

75 o D - 85 o D

Suitable upto 100 o C. Highly resistant to chemical attack including chlorine and chlorine - based compounds

Neoprene

60 o A - 70 o A

Suitable upto 110 o C. Has good abrasion resistance and chemical resistance even in presence of mineral oil

Butyl / Bromo Butyl

50 o A - 60 o A

Resistant to most chemicals of temperature upto 100 o C. Has excellent water - proofing and weathering characteristics.

Hypalon

55 o A - 65 o A

Has excellent resistance against sulphuric acid, chromic acid and other oxidizing agents even upto 120 o C

Nitrile Ebonite

70 o D - 75 o D

Suitable upto 110 o C. Resistant to mineral oils and many solvents

Soft/Hard/Soft (Triplex type-triple layer)

55 o A - 69 o A

Suitable for combined resistance to chemical, abrasion and mechanical shocks upto 90 o C

EPDM

70 o A - 80 o A

Suitable upto 100 o C. Resistant to most chemicals. Used extensively for gaskets. Has excellent water proofing and weathering characteristics

Viton (Moulding Compound)

70 o A - 80 o A

Suitable upto 180 o C. Resistant to highly corrosive Chemicals and oils.

OUR RUBBER LINING STANDARD:-

Description

Standard

Lining of equipment with Polymeric Materials for the process industries Part 5. Specification for Lining with Rubber.

BS 6374 :Part 5 : 1985

Test method for Rubber properties in tension

ANSI / ASTM D 412-80

Code of practice for Lining of Vessels and equipment for Chemical Process.

IS 4682 (Part 1) 1968 & Amendment No.3 Nov. 1982

Part 1 Rubber lining.

ASTM Standards Part 37, 38 (1980)

Test methods for Rubber Property - Adhesion to Rigid Substrata.

ASTM D 429-81 (Re-approved 1988)

FEATURES OF RUBBER LINNIG

  • High impact resistance
  • Chemical resistance
  • Corrosion resistance
  • Temperature Resistance
  • Increase Life of Equipments
  • Easy to replace
  • Strength
  • Abrasive resistance
